Patmark Series
Hand-held dot peen marker ✓
Mobile marking of metals, plastics & wood
dot peen marker handheld
- Cost-effective dot peen marker from €2,499
- Over 5,000 satisfied Patmark customers worldwide
- Ultra easy operation with App/Windows software
- Ultra light with battery | Fatigue-free marking!
- ALL-IN-ONE dot peen marker hand-held unit also stationary
- Ultra compact | Mobile dot peen marking even
in inaccessible places - For metals, plastics, paper & wood products ✓
- Unique high-resolution marking quality!
- Patmark as a punch replacement ✓
No more risk of injury from the hammer!
Patmark | the all-rounder
Alphanumeric characters
DataMatrix & QR Code
Stamps or company logos
Flexible marking depth
Flat & cylindrical components
Patmark model overview
For all those who want to mark uncomplicated, fast and mobile ✓
- 15x15 mm labelling field
- Ideal for markings up to 5 characters
(multi-line 15 characters) - Weight 2,3 kg
- 33x15 mm labelling field
- Ideal for markings up to 12 characters
(multi-line 36 characters) - Weight 2,9 kg
- 80x20 mm labelling field
- Ideal for markings up to 28 characters
(multi-line 112 characters) - Weight 3,5 kg
You don’t know which device suits you best? No problem, our team will be happy to assist you.
Just give us a call or send us an e-mail. We are sure to find the right device for your special application!
Patmark explained in 2 minutes
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
dot peen marker
Handheld Patmark
The mobile dot peen markers of the Patmark series are unique in their design and operation. The handheld dot peen marker scores points for its extremely simple and fast programming via the smartphone app or Windows software, its processing and marking quality and its unbeatable price.
Why be complicated when it can be simple?
Our mobile Patmark dot peen markers are the simplest solution!
dot peen marker handheld
100% flexibility
The handheld dot peen markers have a practical design and a uniquely compact contact surface. This makes the patmarkers extremely handy as well as light and ensures fatigue-free marking at almost any location! The included lithium-ion battery allows you to work even more flexibly, whether on the shop floor or in the yard.
With the mobile dot peen markers of the Patmark series, you can mark almost any geometry, in a high-quality, durable and, above all, fast way!
Patmark a MUST-HAVE in every business!
Fast support
within 24 hours
Over 30 years of marking experience
Free technical advice at any time
Personal contact person in the company
dot peen marker handheld | Application areas
Each hand-held dot peen marker in the Patmark series is equipped with a high-quality solid carbide needle. This can be used to mark a wide variety of materials.
Whether soft or hard surfaces, fine or deep markings. The Patmark is there for everything! The detailed adjustment of the marking parameters ensures that all materials can be marked without having to change the needle. Even coated or lacquered surfaces can be marked without any problems.
- Fine as well as deep markings
- Plastics | Paper | Wood | Leather
- Lacquered or coated surfaces
- Metals such as aluminium, steel, hardened steel, etc.
All materials without needle exchange!
GEOMETRIES

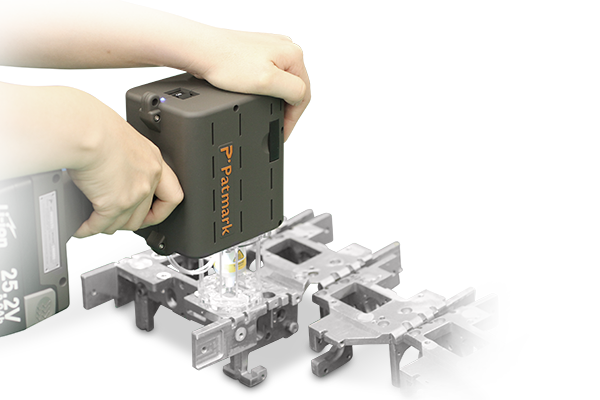

The Patmark dot peen markers have a uniquely compact contact surface that allows you to easily reach even inaccessible places. Both flat and cylindrical components can be captively marked. With the hand-held dot peen markers, you will be able to solve almost any marking task!
The extensive accessories of the respective model facilitate your daily use to a maximum. The height-adjustable column, for example, allows you to mark even the smallest components in a stationary position. Mark your components, devices or similar with the unique marking quality of our patmarkers.
- Flat or cylindrical
- In recesses or with interfering contours
- From large to the smallest component
Patmark an ALL-IN-ONE device ✓

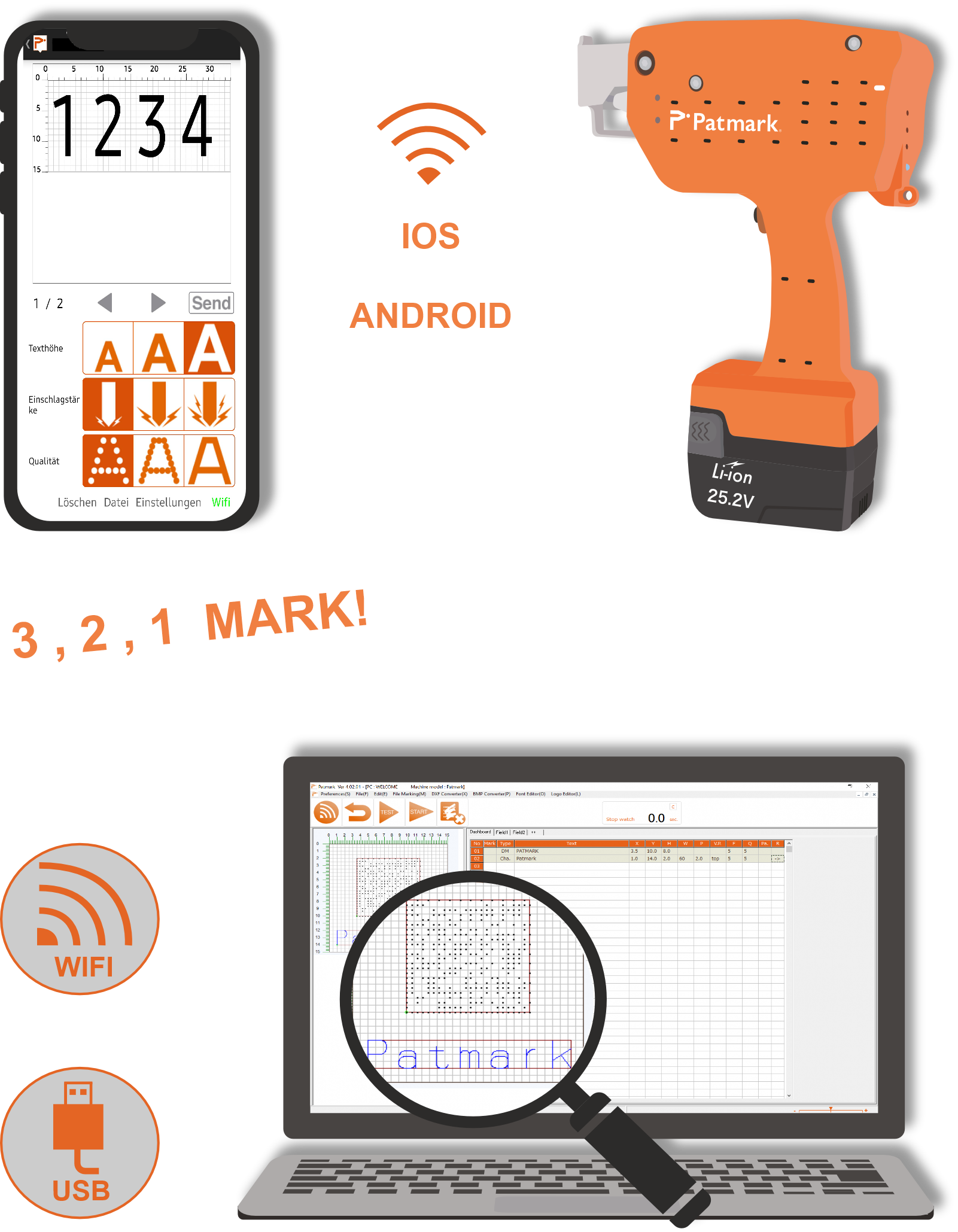

Handheld dot peen marker | Operation

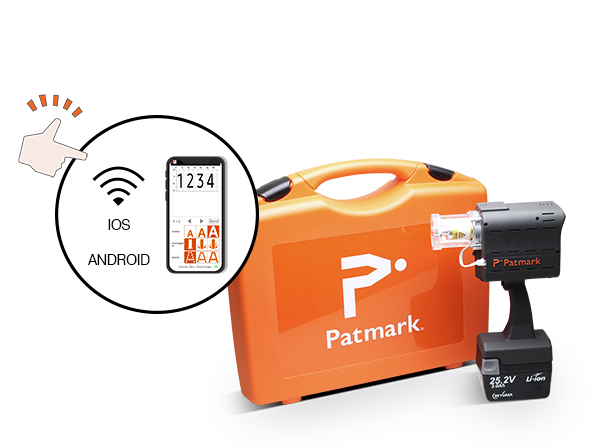

The handheld dot peen markers are programmed via a very simple smartphone/tablet app or via Windows software.
The app is so clearly designed that your employees need no training time and no prior knowledge. In just a few minutes you will be creating your first marks and never want to mark any other way!
However, the mobile dot peen markers of the Patmark series are not only suitable for simple marking tasks – the marking of detailed company logos, precise 2D codes or automatic serial numbers are also among the standard applications.
- Easy & fast programming through preview window
- Texts, Logos, DataMatrix, QR Code
- Calendar - or series marking
- Entering the marking data by scanning a barcode
- Entering the marking data by reading in a CSV file
- Interfaces USB, WiFi
All software options are of course free of charge for you!
FAQ
We would be happy to present the Patmark series at your premises or send you a test unit free of charge.
Due to the compact design, the dot peen markers of the Patmark series are very flexible in use and score with the high marking quality.
The free app for Android or iOS and the free Windows software are available for programming.
Cylindrical components can be marked radially and axially. Axially with the help of V attachments and radially with the help of our Rotary S accessories.
No, the Wifi connection is only between the Patmark dot peen marker and your end device (smartphone, tablet, PC/laptop).
You are not sure whether a corresponding marking is suitable for your component?
Then use our free sample labelling service. We will create the desired marking directly on your components!
